Stainless Steel 68 Key Keyboard , Ip67 Waterproof Computer Keyboard

Name: Stainless Steel 68 Key Keyboard Ip67 Waterproof Computer Keyboard
Brand: guangzhi
Price: 1 USD

Brand Name : guangzhi

Model Number : GZ-C002073

Certification : CE、FCC、RoHS、IP65

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : To be quoted

Payment Terms : T/T, Paypal

Supply Ability : 100000pcs

Delivery Time : 10-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Application : ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.

Connection : USB,PS2

Material : stainless steel

KEYS : 68

Type : Metal

Interface type : USB, PS/2, wire, USB/PS/2, Bluetooth

Contact Now

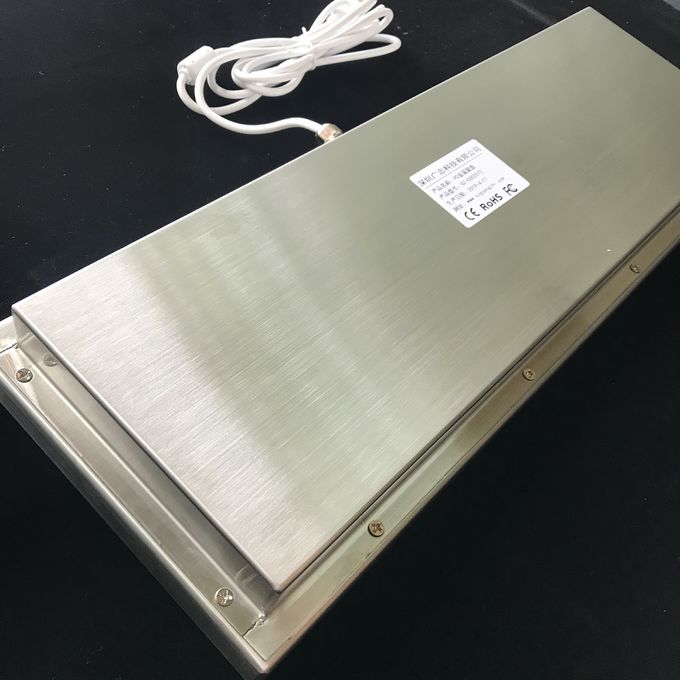

68 key desktop stainless steel computer keyboard, fully waterproof IP67 button

Product name:metal PC keyboard

Model: GZ-C002073-001

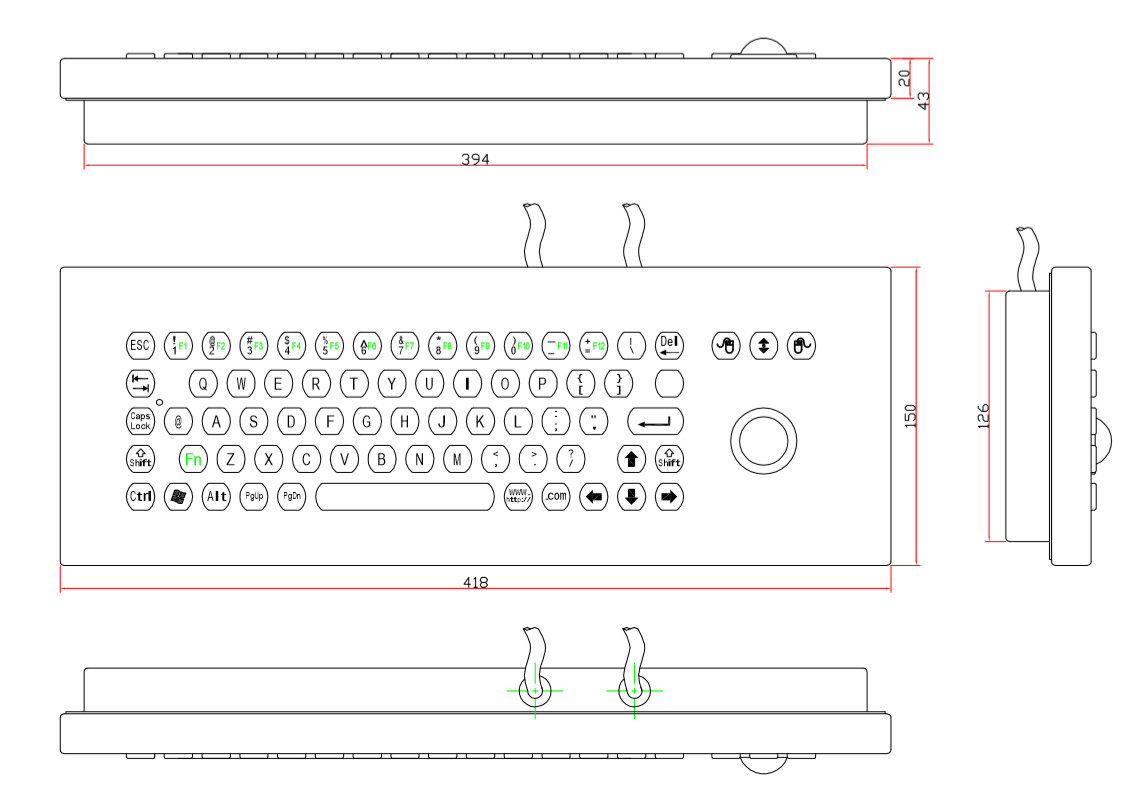

Front panel size:	418*150mm
KEYS:	68 KEYS
Mouse ball size:	25 or 38 mm
Line length:	2m

weight:

1.5KG

Product description: Anti-riot stainless steel keyboard, 68 keys, Compact layout of buttons, 2.0mm long button stroke, Full stainless steel panel and button design, Precise and accurate mold matching, Beautiful surface treatment. Mainly used in various unsupervised Or information terminals in semi-regulated places, Such as Internet terminals, Universities, Shopping malls, Hotels, Banks, Airports, Stations and other public places kiosks, Ticket vending machines, Gas stations, Bank tellers (Automatic deposit / Withdrawal machines), Public Telephone, Etc.

Mechanical parameters:

1. Button: 68 buttons, imported printed brushed SUS304 stainless steel.

2. Button strength: 1.2N +/- 0.1N (contact force)

3. Mutual capacitance sensing:

X/Y axis position detection resolution: 40counts/mm

Trackball resolution: X>200dpi; Y>190dpi (optional mechanical or photo sphere)

x/y position report: relative

Sensing range: 65*49mm

Touch tracking speed: >1.016 m / sec

Power supply voltage: 5V ± 0.25V

Rated current: 17 mA

4. Rear panel: 3.0mm thick brushed aluminum plate

5. Front panel: imported printed brushed SUS304 stainless steel, 1.5mm thick

6. Weight: 2kg

Electrical parameters:

1. Working voltage: DC +5V +/- 5%

2. Working current: 10mA

3. Electromagnetic radiation: EN50081-1

4. Electromagnetic immunity: EN50082-1

5. Electromagnetic compatibility standards: 89/336/EEC EN55022:1988+A1:2003 EN55024:1988+A1:2001+A2:2003

6. Expected service life: >5 years

7. Button switching technology: conductive carbon particles / gold-plated PCB

8. Interface technology: PS2, USB optional

9. Operating System: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx

Environmental adaptability:

1. Atmospheric pressure: 60-106Kpa

2. Salt spray test: 96 hours, IEC60512-6

3.40 °C high humidity test: 21 days, IEC60512-6

4. 85 ° C high drying test: 10 days, IEC60512-6

reliability:

1. Dustproof and waterproof: IP65 (surface)

2. Riot rating: IK09

3. Key life 2 million operations / per key

4. Average failure time > 50,000 hours

5. Average repair time <30 minutes

Special button description:

This keyboard is used in the same way as a normal PC keyboard. The FN function key can be used in combination with the F1-F12 key. Only htp:// http:// , ftp. www. , @ , .com The four buttons are used when they are online, so they need to be used in English.

The specific use method is as follows: switch the input method to the English state EN, press htp:// http:// , ftp. www. , @ , .com to get the corresponding key value. After use, it can be washed with water, disinfectant, alcohol or other cleaning solution.
